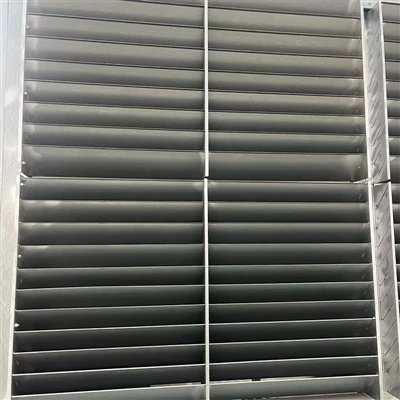

Cooling Tower Air Inlet Louvers
Blade Angle: 30–45°
Blade Spacing: 25–50 mm
Air Speed (design): 2.5 m/s
Pressure Drop: ≤15 Pa
Splash Block Rate: >99.99%
Water Escape Rate: ≤0.0005%Add to Inquiry
Cooling Tower Fan Stacks
Diameter Range: 600 mm to 5,000 mm
Material Options: FRP, Galvanized Steel, Stainless Steel
FRP Weight: ~1/3 of steel
Efficiency Gain: 8–12%
Motor Power Saving:...Add to Inquiry
Cooling Tower Coils
Tube Materials: T2 Copper, 304/316L Stainless Steel, Galvanized Steel
Tube Size (OD): 15.88 mm, 19.05 mm, 25.4 mm
Wall Thickness: 1.0–2.5 mm
Design Pressure: 1.6–2.5...Add to Inquiry
Cooling Tower Gearbox
Power Range: 1.5–315 kW
Speed Ratio: 4:1–20:1
Axial Load Capacity: Up to 50 kN
Gear Types: Bevel (right-angle), Helical (parallel)
Gear Hardness: HRC58–62
Bearing L10...Add to Inquiry
Eliminator Cooling Tower
Water Catch Rate: 99.5–99.9%
Drift Loss: 0.0005–0.002%
National Standard Drift: 0.015%
Module Size: 500×500 mm or 1000×500 mm
Air Speed Range: 2.5–4.5 m/s
Pressure...Add to Inquiry
Direct Drive Cooling Tower Fan Motor
Power Range: 0.55–315 kW
Poles: 4, 6, 8
Protection: IP55 or IP56
Insulation: Class F (Class H optional)
Efficiency: IE3, IE4, IE5
Power Savings (IE4 vs IE3): 3–8%Add to Inquiry
Cooling Tower Water Distribution Nozzles
Uniformity: ≥92%
Pressure Range: 0.03–0.25 MPa
Flow per Nozzle: 1–20 m³/h
Drop Size: 1.5–4 mm
Spray Radius: 0.5–1.5 m
Nozzle Types: Spiral, Target, Rotary, Reflector,...Add to Inquiry
PVC Cooling Tower Fill
Surface Area: 110–200 m²/m³
Gap Sizes: 14 mm, 19 mm, 24 mm, 30 mm
Material Options: PVC (up to 55°C), PP (up to 70°C), CPVC (up to 90°C), PVDF (acidic water)
Sheet Thickness:...Add to Inquiry
Low Noise Cooling Tower Fan
Fan Diameter: 600 mm – 6,000 mm
Fan Efficiency: 78–85%
Blade Material: Aluminum or FRP
Blade Adjustment: ±3°
Tip Speed: 50–65 m/s
Sound Level: ≤32 dB(A) per m³/sAdd to Inquiry

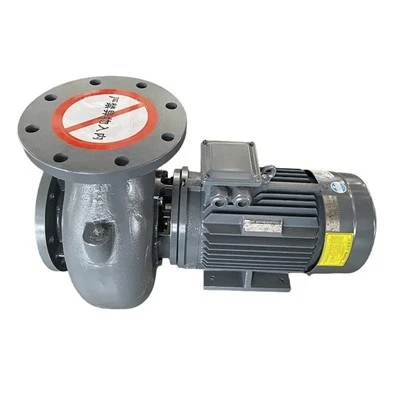

Cooling Tower Circulation Pump
Water Flow Range: 5–1,200 m³/h
Head Pressure: 12–50 m
Efficiency Gain: 5–8% over standard pumps
NPSH: 2.5–4.0 m
Seal Type: SiC-SiC with Hastelloy C-276 spring
Seal...Add to Inquiry
